Spatz + Control Cabinet Cl-R1

Spatz + Control Cabinet Cl-R1

Matuschek Meßtechnik

Teslimat Seçenekleri
info@yursat.com.tr
Ücretsiz teslimat (Kapı Teslim)
Tedarik süreci min. 3-4 hafta

Matuschek Meßtechnik ürünlerini Türkiye genelinde kapı teslimi olarak satın almak istiyorsanız, lütfen talebinizle ilgili ürün kodları ve miktarı içeren bilgileri, iletişim bilgilerinizle birlikte info@yursat.com.tr adresimize gönderiniz. Ekibimiz en kısa sürede sizlere satış teklifi sunacaktır.
Spatz + Control Cabinet Cl-R1 ve diğer modellerimizi içeren geniş ürün portföyümüzü görmek için aşağıdaki listeyi kontrol edebilirsiniz. Eğer ihtiyacınız olan ürünü bulamıyorsanız, lütfen bizimle iletişime geçmekten çekinmeyin, yeni talebinizi mail gönderebilir ya da Teklif İste formunu doldurabilirsiniz.

Firmamız, Matuschek Meßtechnik Türkiye Distribütörü veya temsilcisi değildir. Firmamız sipariş durumunda, belirtilen ürünlerde sadece Orjinal ve yeni ürün teklifi sunmaktadır. Bu sitede gösterilen Özel marka adları ve ticari markalar ilgili sahiplerinin mülkiyetindedir.
Model Tanımı

- Cabinet dimensions W x H x D: 700 x 400 x 530 mm
(including supernatants)
- Color light gray, RAL 7035
- Main switch 100 A 4-pole with integrated
30 mA residual current monitoring, type B,
Operating handle in the control cabinet door
- Connection welding transformer on
35² mm terminal block on the inverter
- Mains connection on main switch
- Ext. 24 V DC power supply
- Cable feed via cable glands
in the back of the control cabinet
- Active fan cover with two fans,
protected against blocking

Tüm Modeller (Matuschek Meßtechnik)
Power source Medium frequency inverter for connection to an external welding transformer - 1kHz MF-DC inverter power source - adaptive MASTER control method - 1024 MASTER reference welding programs - 128 service programs - USB and Ethernet interface for direct connection to the PC - 2 slots for expansion cards - Extended QS data package - Parallel I / O interface, 16 dig. Inputs, 10 dig. Outputs, 24V DC - Signal inputs for welding current and voltage - Power supply 3 ~ 400V - 480V, 50 / 60Hz - nominal power 150 kVA at 20% ED, 90kVA at 50% ED and 400V - Max. Output current I = 450A, nominal 400A - air cooling
Spatz+ M400l

Power source Medium frequency inverter for connection to an external welding transformer - 1kHz MF-DC inverter power source - adaptive MASTER control method - 1024 MASTER reference welding programs - 128 service programs - USB and Ethernet interface for direct connection to the PC - 2 slots for expansion cards - Extended QS data package - Parallel I / O interface, 16 dig. Inputs, 10 dig. Outputs, 24V DC - Signal inputs for welding current and voltage - Power supply 3 ~ 400V - 480V, 50 / 60Hz - nominal power 150 kVA at 20% ED, 90kVA at 50% ED and 400V - Max. Output current I = 450A, nominal 400A - air cooling

Fieldbus card Profinet Cu - Top board for fieldbus slot - Dual switch with 8-pin RJ45 plugs
Spatz+ Fb-Net

Fieldbus card Profinet Cu - Top board for fieldbus slot - Dual switch with 8-pin RJ45 plugs

PC software - Programming individual welding controls via a USB connection - Complete online functionality - QA trend analysis of the last 1,000 welds - Error log with display of the curves the respective weld (welding current, Electrode voltage, control value) - System requirements: - CPU Intel i3, 2 GHz, 1 GB HDD - 8 GB RAM - Monitor resolution 1600 x 900 pixels - Windows 7 or higher
Spatz Studio

PC software - Programming individual welding controls via a USB connection - Complete online functionality - QA trend analysis of the last 1,000 welds - Error log with display of the curves the respective weld (welding current, Electrode voltage, control value) - System requirements: - CPU Intel i3, 2 GHz, 1 GB HDD - 8 GB RAM - Monitor resolution 1600 x 900 pixels - Windows 7 or higher

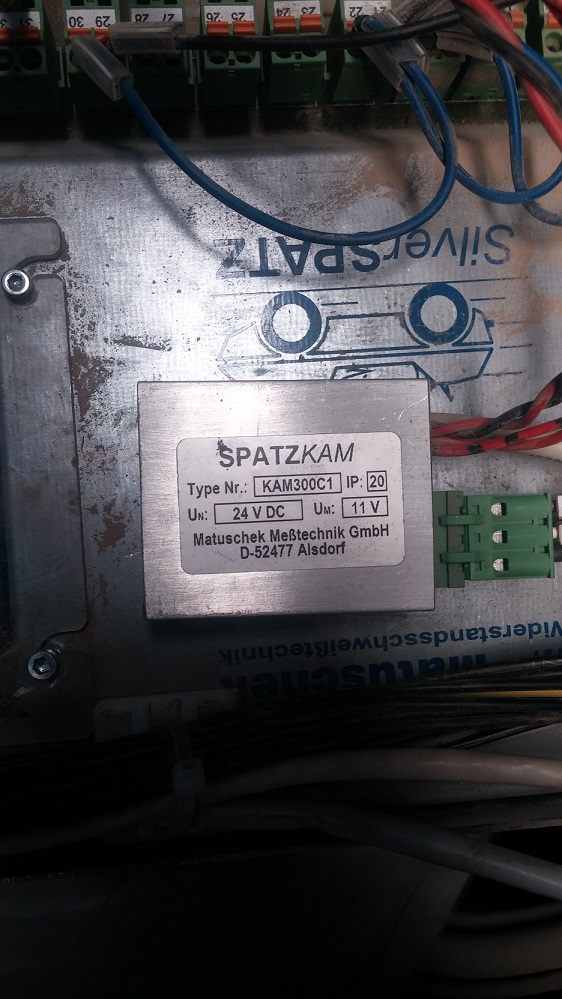

SPATZKAM Type Nr. : KAM300C1 UN. : 24V DC UM. : 11V IP: 20
Kam300c1

SPATZKAM Type Nr. : KAM300C1 UN. : 24V DC UM. : 11V IP: 20

ÜBERPRÜFUNGSMODUL SCHWEISSMASCHINE
Dd106n16k

ÜBERPRÜFUNGSMODUL SCHWEISSMASCHINE

Si-150-Wr
Überprüfungsmodul
Ultiforce
Connecting Cable
SPATZ+ M400W power source medium frequency inverter for connection to external welding transformer - 1 kHz MF-DC inverter power source - adaptive MASTER control procedure - 1024 MASTER reference welding programs - 128 service programs - USB and Ethernet interface for direct connection to the PC - 2 slots for expansion cards - extended QS data package - Parallel I/O interface, 16 dig. inputs, 10 digits Outputs, 24VDC - Signal inputs for welding current and voltage - Analog input for force and displacement signal, 0 - 10 V - Power supply 3~ 400 V - 500 V, 50/60 Hz - Rated power 140 kVA at 20% ED, 88 kVA at 50% ED and 400 V - max. output current I = 450 A, nominal 400 A - Water cooling
M04PWK003

SPATZ+ M400W power source medium frequency inverter for connection to external welding transformer - 1 kHz MF-DC inverter power source - adaptive MASTER control procedure - 1024 MASTER reference welding programs - 128 service programs - USB and Ethernet interface for direct connection to the PC - 2 slots for expansion cards - extended QS data package - Parallel I/O interface, 16 dig. inputs, 10 digits Outputs, 24VDC - Signal inputs for welding current and voltage - Analog input for force and displacement signal, 0 - 10 V - Power supply 3~ 400 V - 500 V, 50/60 Hz - Rated power 140 kVA at 20% ED, 88 kVA at 50% ED and 400 V - max. output current I = 450 A, nominal 400 A - Water cooling
